Stampo a ricciolo per arricciatura lamiere | L’arricciatura riferita alla lamiera è una lavorazione utilizzata per creare un ricciolo.

Curling

Curling Mold

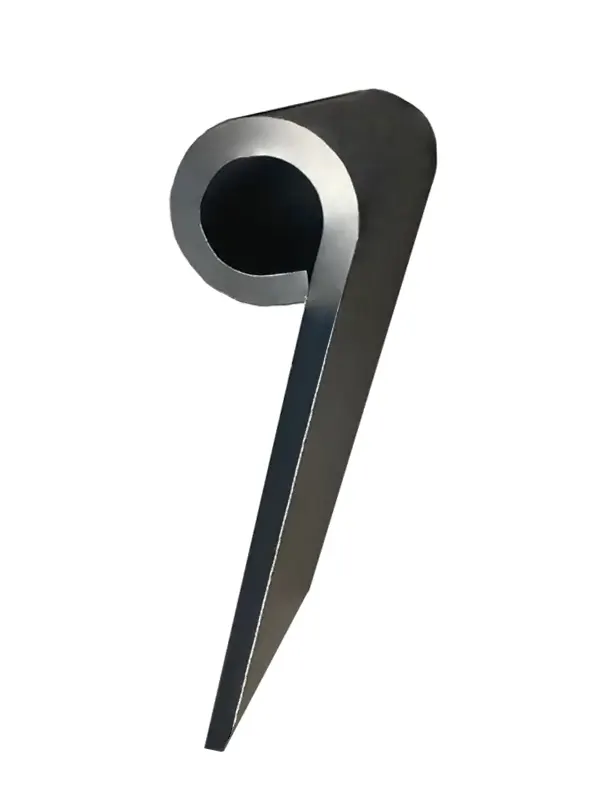

Curling refers to a process used to create a curl in which to house a pin.

How is it made in a mold?

Curling is a process used to achieve a curl, typically used as a guide for a connecting or rotating pin. Let’s examine the characteristics and potential it offers. Curling is an extreme bending process, meaning that it folds the sheet metal onto itself to create a circular passage. The generated curl becomes a seat for pins and is often used to construct hinges from sheet metal. Using bending or punching presses, the process becomes quick and flexible, allowing for length variations with a single mold.

Curling is achieved with the aid of a mold installed on a suitably powerful press. Inside the mold, the sheet metal is constrained in a seat and pushed along a winding path to achieve the desired shape, usually a circular eyelet. The recommended materials are those that are highly malleable and plastic, as the forming of the eyelet is very stressful. The thickness of the sheet metal can vary from a few tenths to several millimeters. To avoid issues with the collapse of the curl or incorrect hole dimensions, it is advisable to use sheets of constant thickness with excellent cutting profile quality. The effort required for curling is comparable to the effort required for bending the sheet metal. The machines or presses must be proportionate to this parameter.

Visit Our Website

L'articolo Curling Mold proviene da GEM Srl.

]]> Rebar Bending https://gem-srl.eu/en/rebar-bending/ Wed, 04 Dec 2024 11:04:43 +0000 https://gem-srl.eu/?p=619 L'articolo Rebar Bending proviene da GEM Srl.

]]>
Piega a tondino | Soluzione per piegatura a tondino | Utensile per piegatura tondini fino a 14mm di diametro

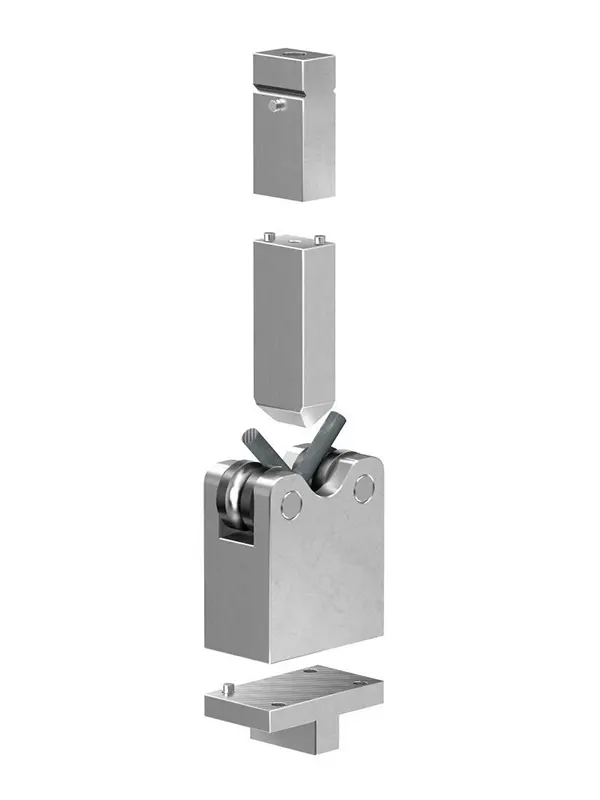

Tool for Bending Rebars up to 14mm in Diameter

Rebar Bending

An advanced solution for bending rebars up to a maximum diameter of 14 mm, ideal for applications where precision and material integrity are essential. Designed to integrate with Wila and Promecam attachment systems, two widely used standards in the bending machine sector, this tool offers versatile compatibility and optimal ease of use.

The presence of rollers mounted on bearings is a key element of the design and practicality of the product: these rollers allow for uniform pressure distribution, minimizing friction and preventing surface damage.

Thanks to its sophisticated design, the tool ensures accurate bends, with minimized tolerances, thus improving the repeatability of the process and increasing operational efficiency in demanding production environments.

Visit Our Website

L'articolo Rebar Bending proviene da GEM Srl.

]]> Special Mold for Z and 90° Bending https://gem-srl.eu/en/special-mold-for-z-and-90-bending/ Wed, 04 Dec 2024 11:00:33 +0000 https://gem-srl.eu/?p=621 L'articolo Special Mold for Z and 90° Bending proviene da GEM Srl.

]]>
Stampo speciale per piega a Z e a 90 gradi | Progettato per realizzare pieghe complesse, come la piega a Z e la piega a 90°.

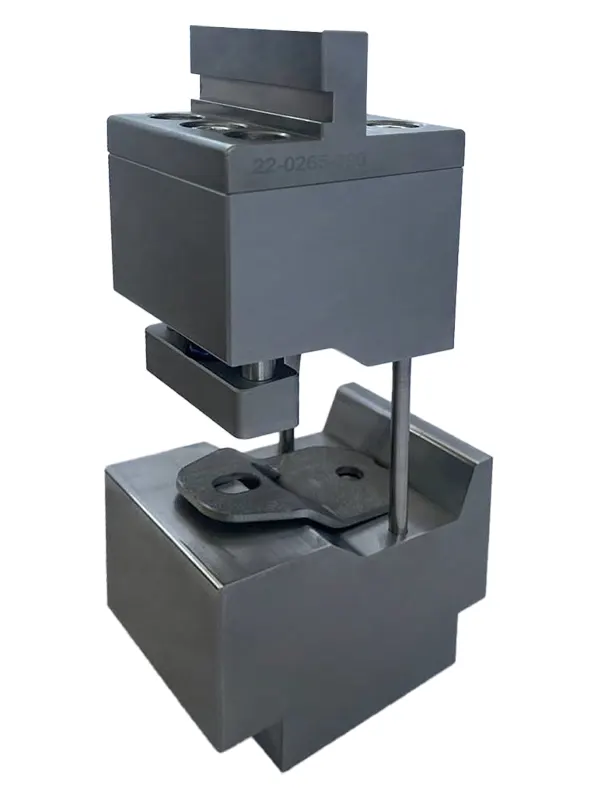

Special Mold for Z and 90° Bending

Special Mold

Designed to create complex bends, such as Z bends and 90° bends, within a part, this tool ensures precision and quality in the processing of materials. The presence of a mechanical extraction system integrated into the mold facilitates the removal of the processed piece. This system is essential to avoid unwanted deformations during the extraction of the piece.

The compatibility with the Promecam attachment, a widely used standard in the bending machine sector, ensures that the mold can be easily mounted on a wide range of machines, offering flexibility and adaptability in various production contexts. The mold is designed to withstand the high mechanical stresses that occur during the bending process, ensuring long durability and reliability. Thanks to its advanced design, this mold allows for complex bends to be executed with a high degree of precision.

Visit Our Website

L'articolo Special Mold for Z and 90° Bending proviene da GEM Srl.

]]>
